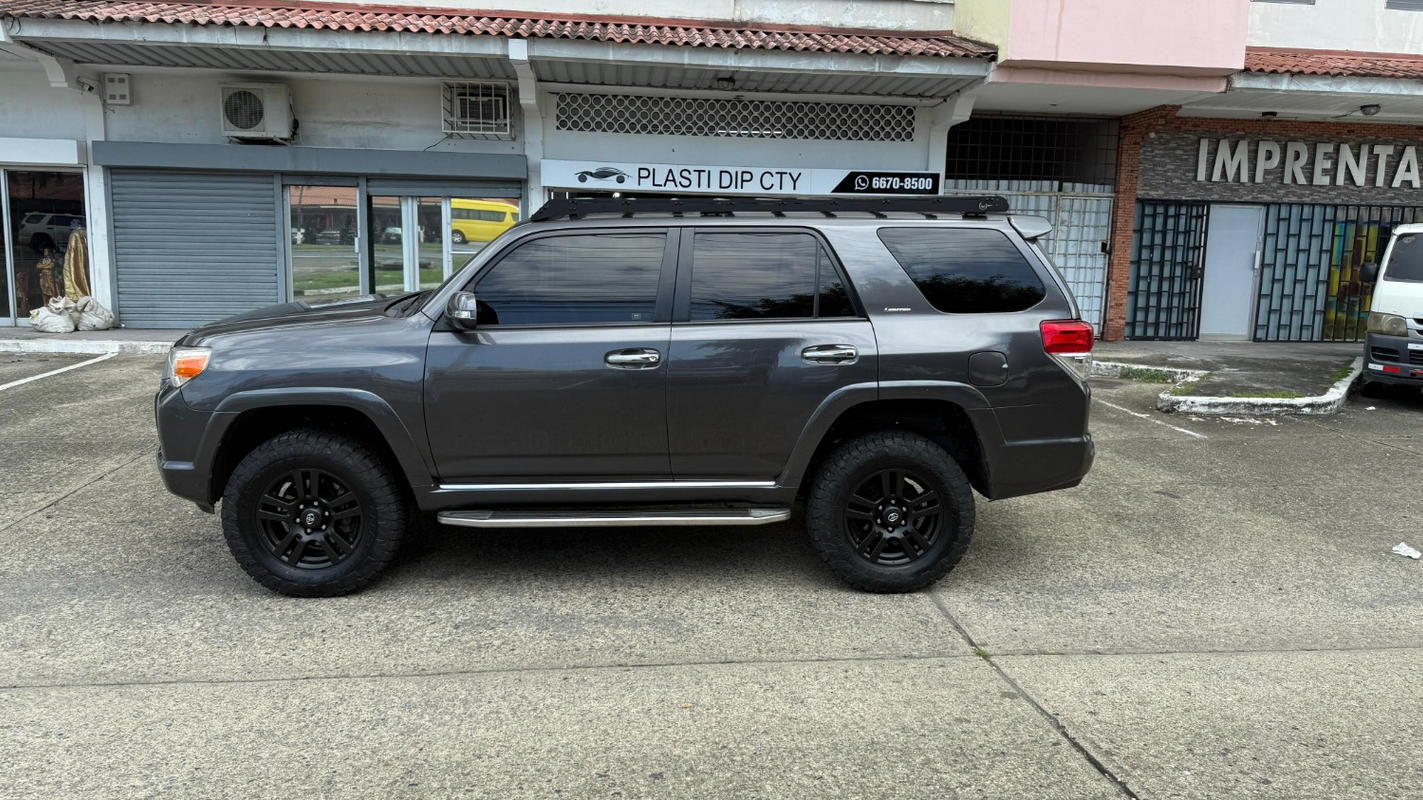

Prinsu Roof Rack Full Non-Drill For 4Runner (2010-2024)
480Take the look and functionality of your 4Runner to the next level with the Prinsu 4Runner Roof Rack Full Non-Drill. This best-selling 4Runner roof rack is made of high quality aluminum and powder coated black for extreme durability.
- Made of high quality powder coated aluminum
- Modular design
- Works with all 2010-2024 4Runners
- Noise reducing trim included
- Easy installation, no drilling
- Bolts right into factory mounting holes
- Works with all sunroof and non-sunroof 4Runner models
- Limited lifetime warranty
- Made in America
We've added an option to purchase the Cali Raised 40" Prinsu Light Bar Kit, available in white or amber LED (amber option has a clear lens but shines amber). This light bar is a true no hassle install with all the brackets and wiring needed for a simple and easy setup. OEM style "LED LIGHT BAR" blue backlight switch included.
DETAILS
- Installed Rack Weight: 50 pounds
- Height Added over Roof: 1.75" total
- Total installed Width: 47 Inches
- Gap between Roof and Rack: 0.625 Inches
- Load Weight Capacity: 300 pounds dynamic weight 600 pounds static weight
The 4Runner Prinsu Full Roof rack is a modular, adjustable, and completely bolt together full length roof rack for 2010-2024 Toyota 4Runners, and is compatible with all 4Runner trims. The sunroof can tilt and fully open with the rack on, you can also take off the crossbars to leave a gap for the sunroof if desired as well. Fully modular, adjust it however you’d like.
The rack consists of 2 laser cut side rails constructed of 1/4″ 5052 aluminum plate. These rails have 3 mounting tabs each that will allow you to bolt the rack into the 4 factory mounting holes and 3m Industrial Adhesive on each side of the roof.
The crossbars are made from a 1″ x 2″ aluminum extrusion that has 2 top facing T-slot channels, a fore and aft channel, and 2 bottom facing channels. This offers numerous solutions for tie down options, cargo security, and the addition of accessories such as tool mounts or lighting. All products will come in black. All assembly hardware comes in a black zinc finish so as to match a black paint or powdercoat finish on the final product. All mounting hardware is either stainless steel or high quality zn plated. The rack also includes a 1/8″ 5052 aluminum plate wind deflector to help with aerodynamics and prevent wind noise.
The rack is completely modular in that you choose how your rack is configured. Refer to the gallery for an example of standard configurations we have used based on different load sizes and weights. You can also choose the number of cross bars you assemble your rack with. The rack comes standard with 9 cross bars for cargo and 1 additional for mounting a wind deflector, lightbar, or combination of the two.
The weight capacity of the racks varies based on the number of crossbars used and their configuration.
The product comes powder-coated black with black anodized aluminum cross-bar extrusions. One crossbar will not be anodized. It is intended to sit behind the wind deflector.
The weight capacity of the racks varies based on the number of crossbars used and their configuration. We expect all consumers to use good judgment and common sense with the loads they plan to carry using these rack systems.
- 5th Gen Toyota 4Runner
- Noise reducing edge trim is included with the purchase of the rack
SPECIFICATIONS
Weight: 75 lbs
Dimensions: 96 x 10 x 8 in
Frequently Asked Questions:
Q: How much Weight can the Prinsu Roof Rack Hold?
A: The Prinsu Roof rack has a load weight rating for 300 pounds of dynamic weight or 600 pounds of static weight. Generally the rack will be capable of holding almost any roof tent or other roof rack mounted accessory you throw at it.
Q: How much height does the Prinsu Roof Rack add to my vehicle?
A: The Prinsu Roof rack sits a total of 1.75 inches higher than the vehicle roof when installed. This is Very Similar in height to the factory skii rack so odds are you wont notice the height difference between the factor skii bars and the prinsu roof rack. As you can see from the images of the rack, the design is very low profile when nothing is mounted to it.
Q: How much Noise does the Prinsu Roof rack make when driving? (Is the Prinsu roof rack louder on the freeway than the factory Cross bars?)
A: The Prinsu Roof includes a wind sound reducing trim that helps reduce and wind noise that would be generated by the rack. For this reason the noise level compared to the factory rails is so minimal that it is not a noticeable concern.
Q: How do accessories mount to the prinsu roof rack? or What Accessories can I mount to the prinsu roof racks?
A: The prinsu roof rack design is extremely universal and allows you to use 1/4" carriage bolts to mount virtually anything to the rack in hundreds of possible configurations. The rack is also compatible with a long list of products made by Prinsu and other reputable manufacturers. A list of some of the things you can mount to the rack include: Maxtrax, roof tents, lightbars, bottle openers, roam awnings, Roam cases, tie down mounting points, and so much more. The rack includes mounting surfaces on bot the cross bars and the outer frame.
Light Bar Add On
This hassle-free light bar kit has been designed to perfectly fit the Prinsu 40" cutout, and comes with everything needed. Ignite the night with the quality backed Cali Raised Light Bar Kit.
- Easy Installation
- Full Kit: 40" Light Bar, Low Profile Mounting Brackets & Hardware, Wiring Harness, OEM Style Switch Button (Blue Backlight)
- 20,000 Lumens, 200 Watts, 40 LED's
- Gore Pressure Equalizing Vent
- Instant On/Off - No Warm Up
- AMBER Color Light Bar is a CLEAR Lens
