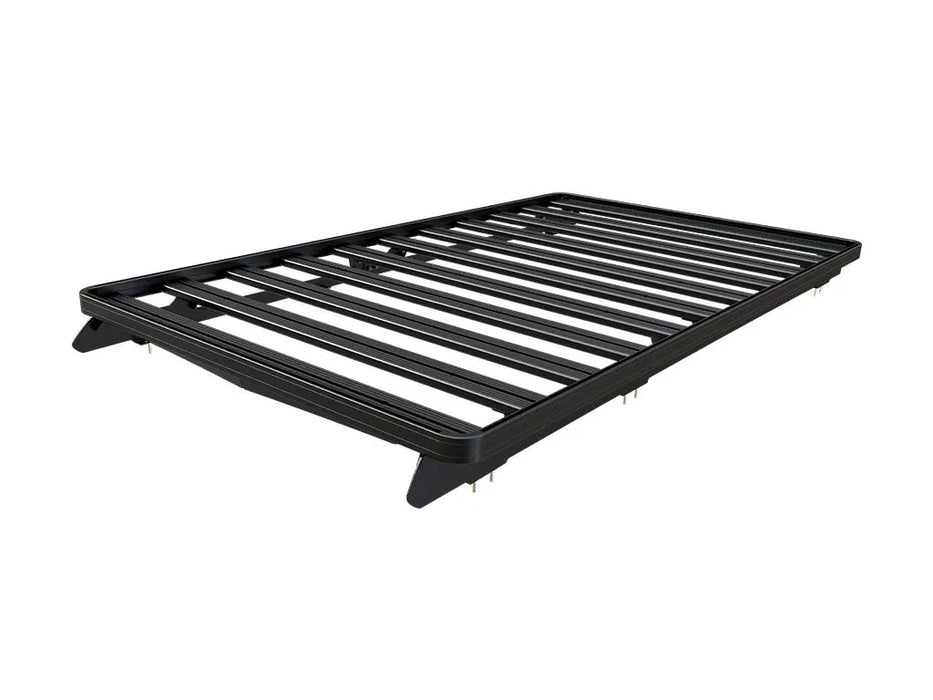

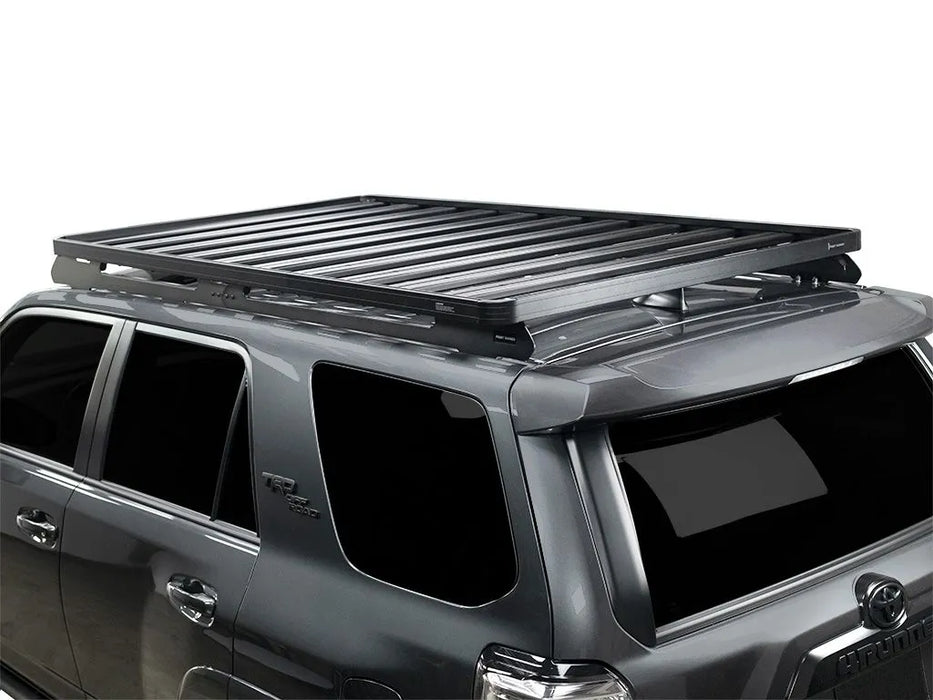

Front Runner Slimline II Roof Rack Kit For 4Runner (2010-2024)
2This 2166mm/85.3” full-size Slimline II Cargo Roof Rack Kit contains the Slimline II Tray, Wind Deflector and a set of Foot Rails to mount the Slimline II Tray to the 5th Gen Toyota 4Runner. Easily install using the eight existing factory mounting points. Drilling and no drilling mounting options are included to secure the front Foot Rails.
All Front Runner Rack Kits contain installation instructions and all the necessary components to mount the Slimline II Tray to your vehicle.
The vehicle-specific Foot Rails have openings for storing compatible gear under the rack, such as Front Runner tables.
An opening on the Foot Rails allows access to Front Runner under rack mount tables (1 smaller prep or 1 larger camp size table).
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Consisting of:
1x FATF006 - Toyota 4runner (2009-Current) Full Rack Foot Rails
1x RRAC961 - Toyota 4Runner (5th Gen) No Drill Installation Kit
1x RRSTD11 - SLII Tray - 1255mm(W)X2166mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 41.379kg (91.22lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 450mm (18")
Length: 1730mm (68")
Height: 140mm (6")
Shipping Weight:
Weight: 41.84kg (92lbs)
