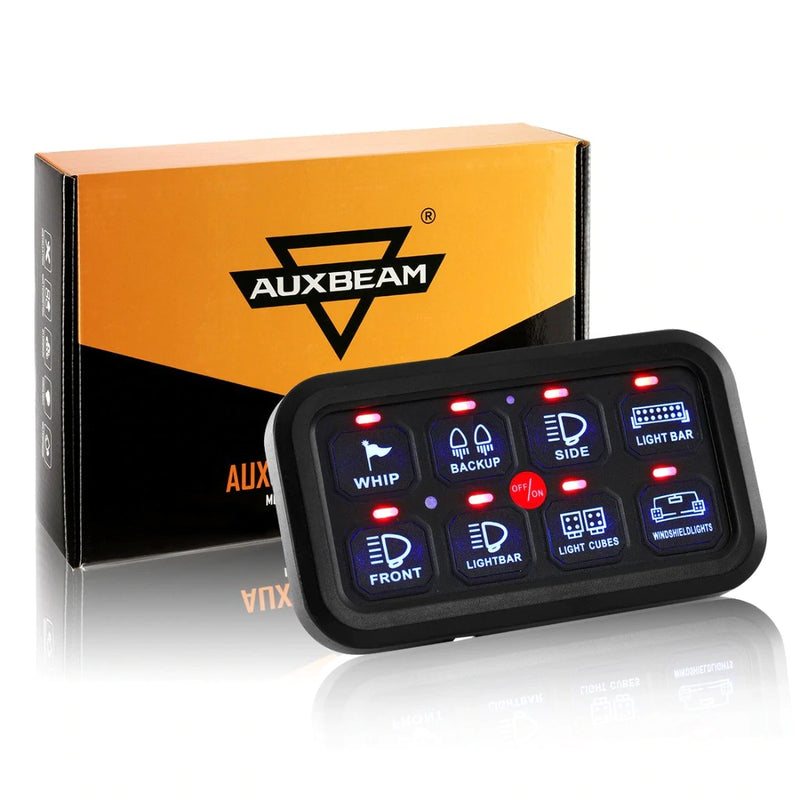

Auxbeam 8 Gang LED Switch Panel Kit (One-Sided)

$188.98

Features :

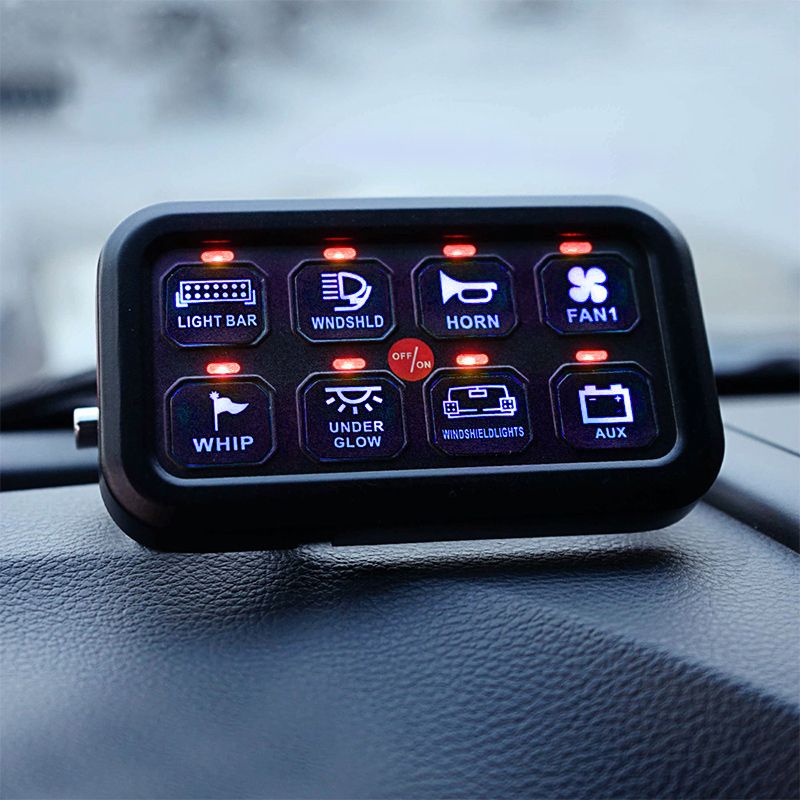

▶8 Gang Switch Panel

  • 8 Gang on-off Control Flat Panel Switch: Adpot Capacitive sensing technology with blue indicator light display, waterproof IP65, with high sensitivity, stability, and strong anti-interference ability.

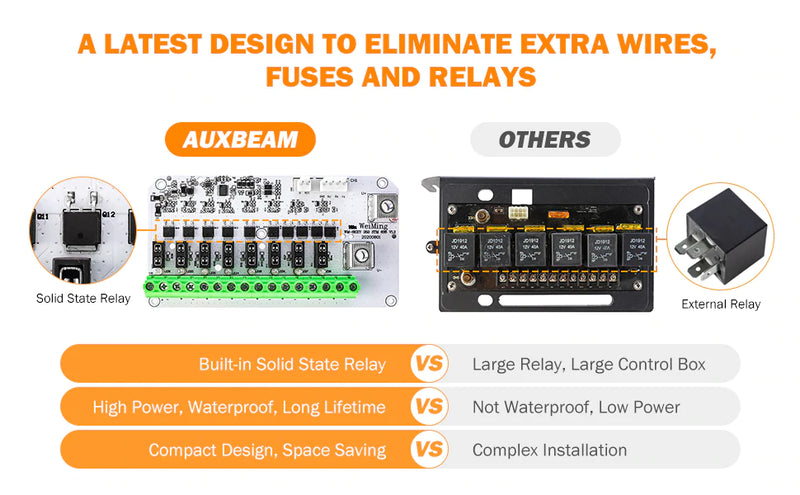

  • Safety protection: Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection.
  • Label Stickers: Rocker Switch Panel with replacement label stickers by your favor and needs.

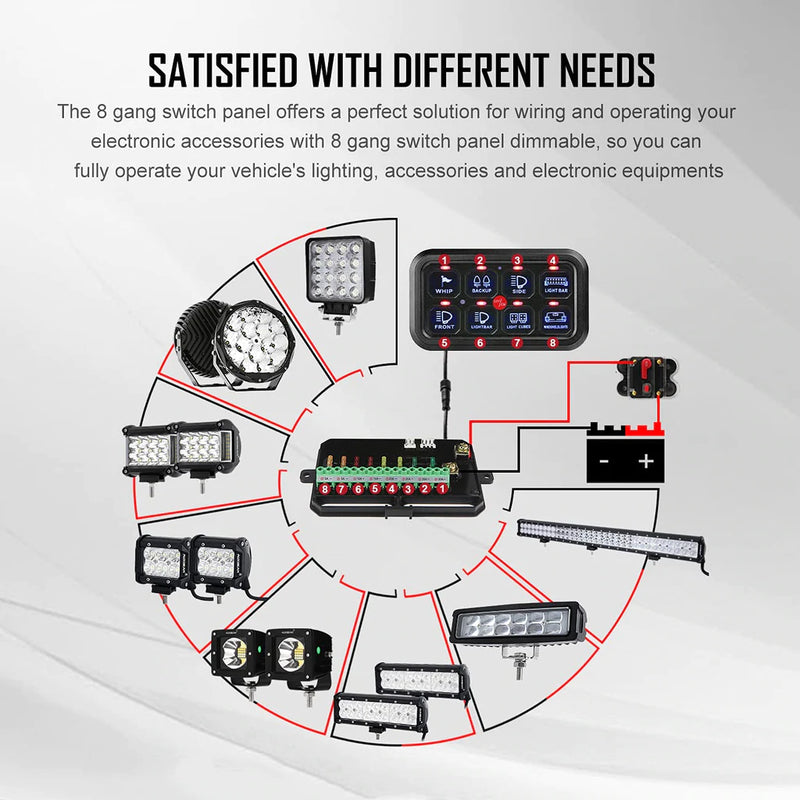

  • Wide application: 8 In 1 touch screen panel with the 12-24VDC input voltage, fit for most cars, trucks, boats, yachts, and Caravans.

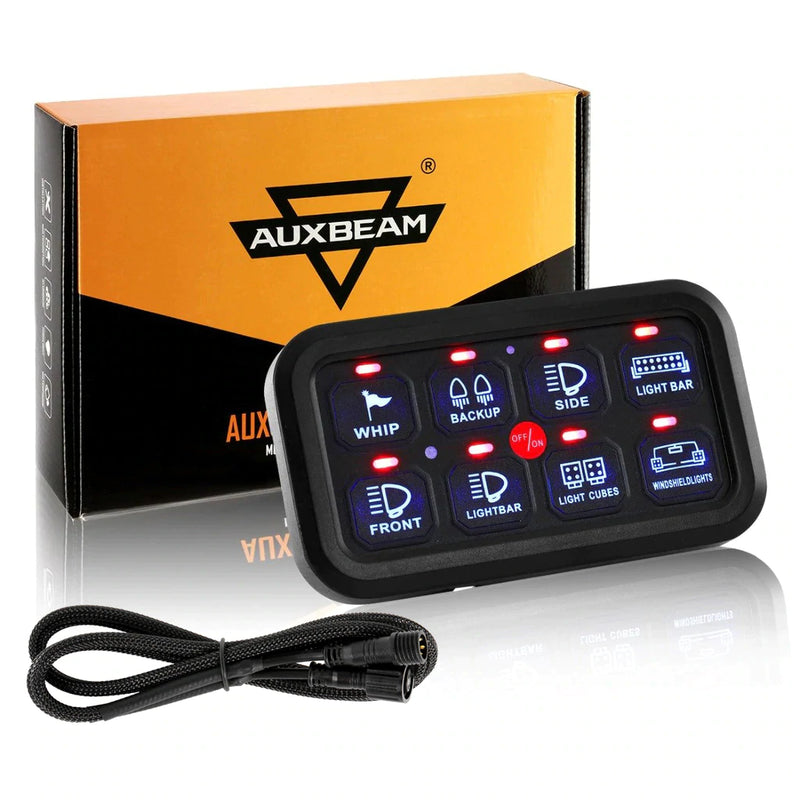

▶47 Inch Extension Cable
  • There is a 4-pin aviation video cable, a cable for transmitting video and power.
  • It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid and is connected with a vehicle monitoring CCTV system.
  • Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
  • Power input DC 12 V ¨C DC 24 v.
  • Especially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.

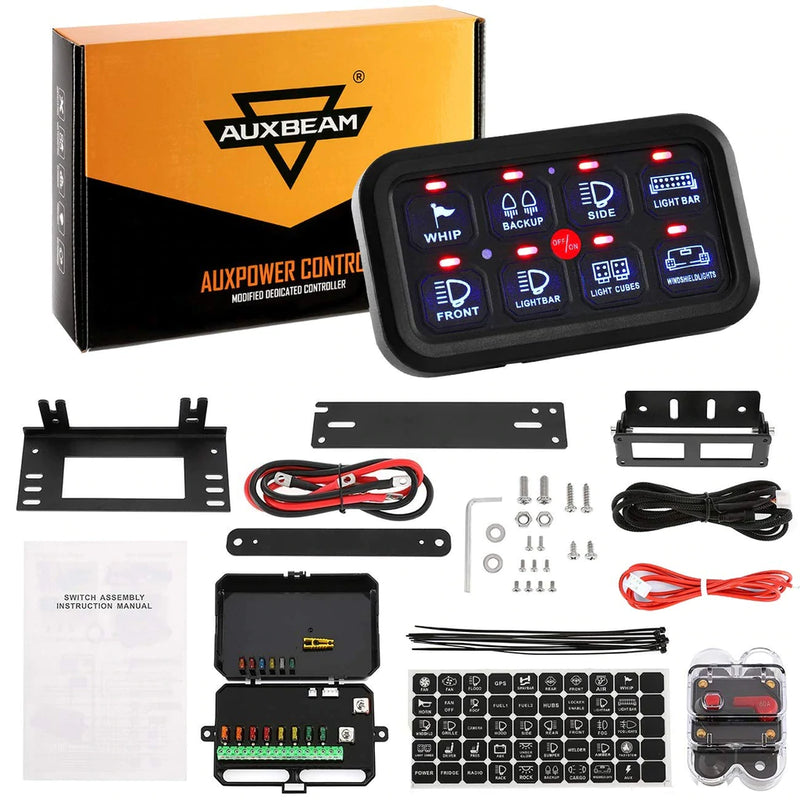

    Package Included :

    1 Set of 8 Gang on-off Control Switch Panel
    1*Extension Cable (OPTIONAL)


    Installation Guide :

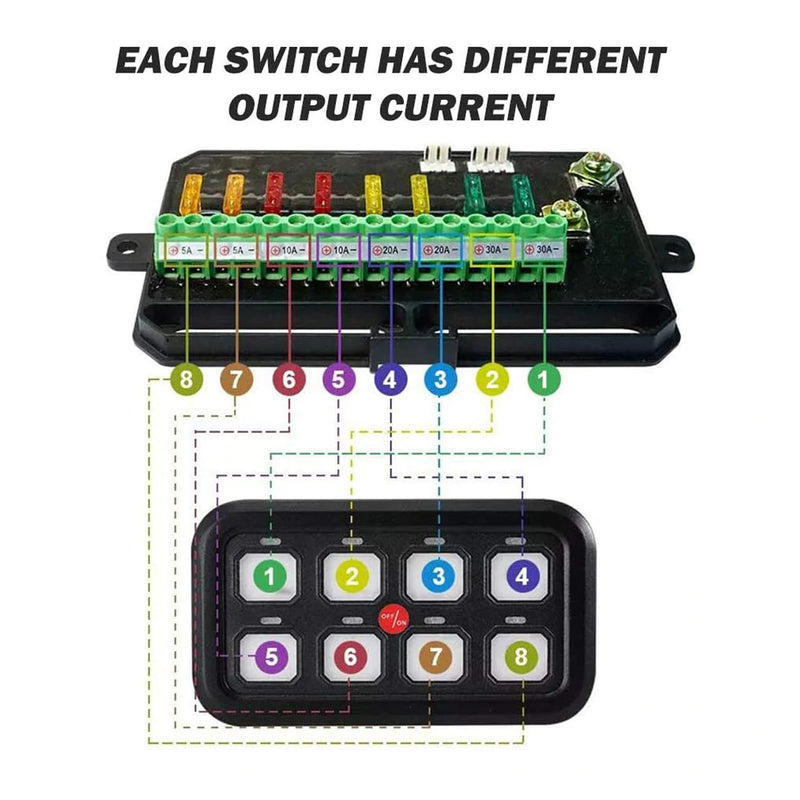

    * Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
    The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.
    * The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.
    * Make sure all the lamps are connected before connecting the power cable.


    Guideline for connecting the red control cables:

    The red cable connects the master switch power cable to the ACC.If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.

    Specification :

    Working voltage: DC 12-24V Rated voltage: 12V 20A / 24V 10A Switch operation: On-Off Operating at 12 Volts: max power rating of 600W Operating at 24 Volts: max power rating of 1200W Max current: 60A Operating temperature: -25°C - +80°C Waterproof rating: IP65
