Diode Dynamics Stage Series Upper Grille Hidden Light Bar Kit For 4Runner (2014-2024)

• Direct fitment on the 2014-2019 Toyota 4Runner and 2014-2024 Toyota 4Runner TRD Pro.
• Allows you to mount two 6” light bars in the upper grille opening.
• Street legal output as Driving Lights.
• Utilizes existing mounting points for easy installation - no cutting or drilling required.

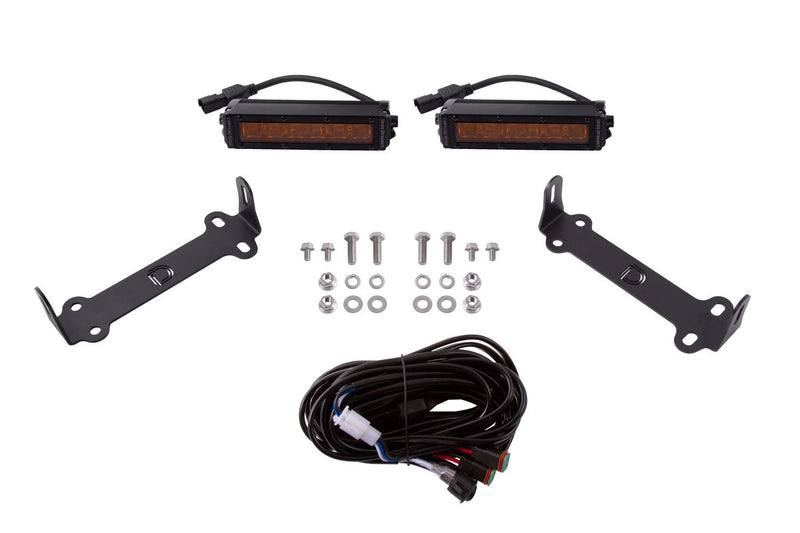

What's Included

• Two (2) application-specific SS6 brackets for installation on the 2014-2024 Toyota 4Runner
• Two (2) SS6 Stage Series lightbars
• One (1) heavy-duty dual-output wiring harness
• Mounting hardware and guide

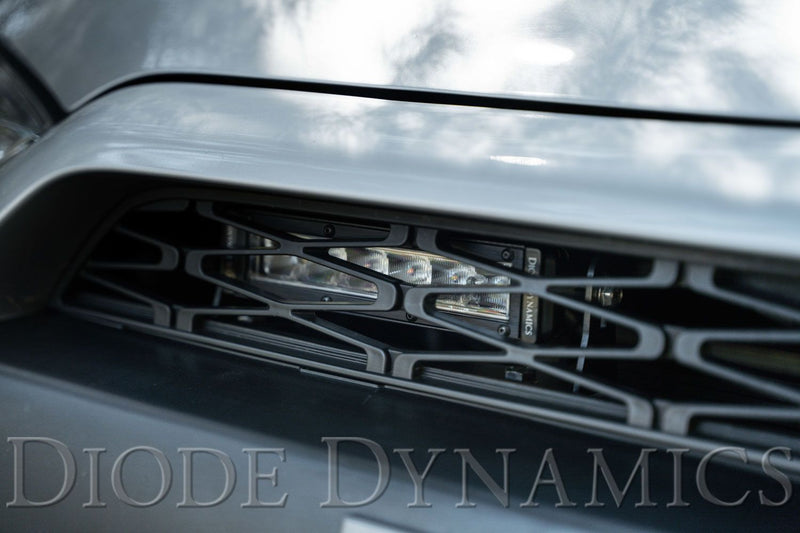

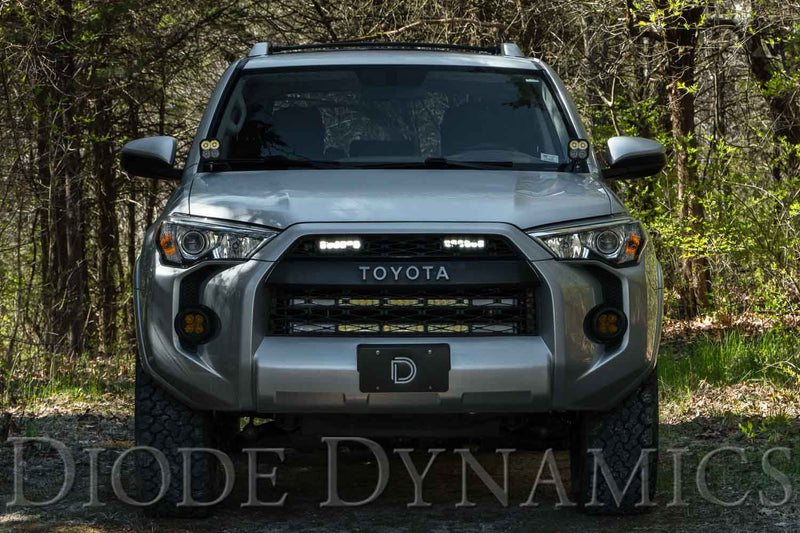

Perfect Fitment. The SAE/DOT LED Lightbar Kit for the 2014-2024 Toyota 4Runner from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.

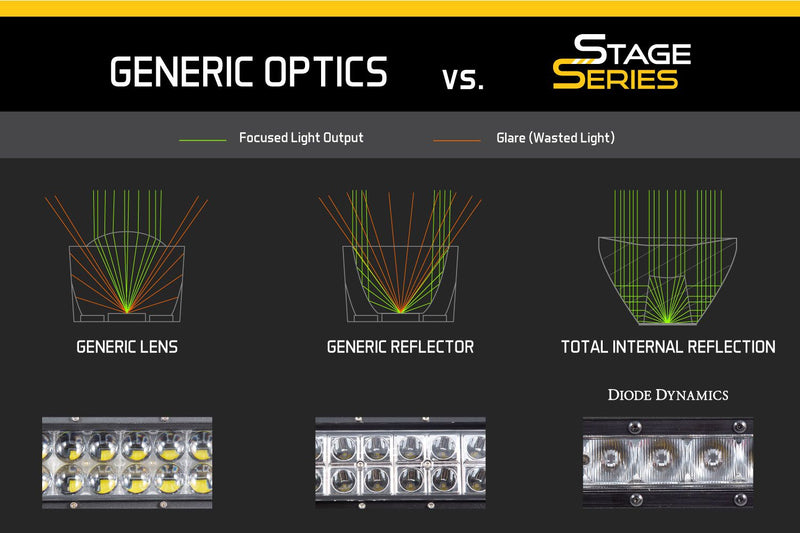

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

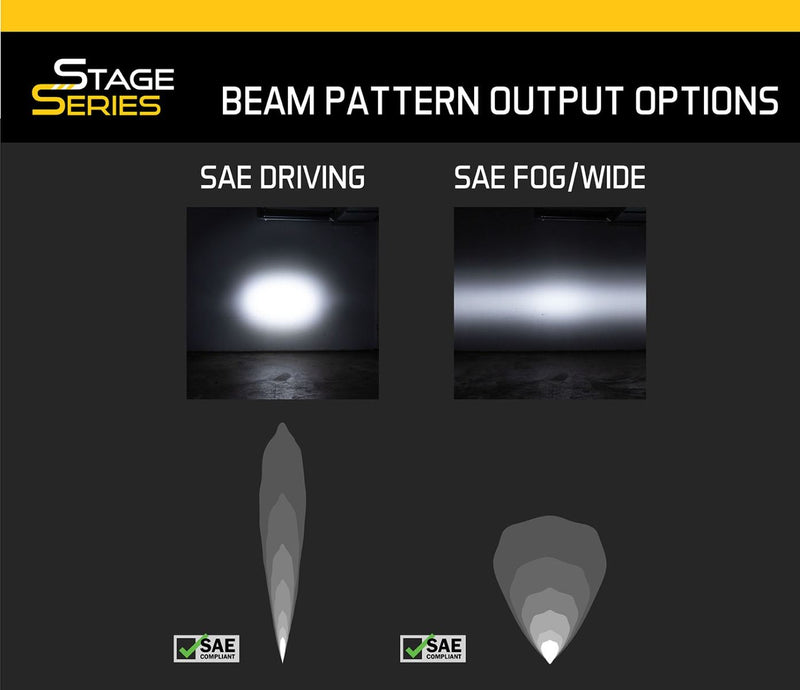

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

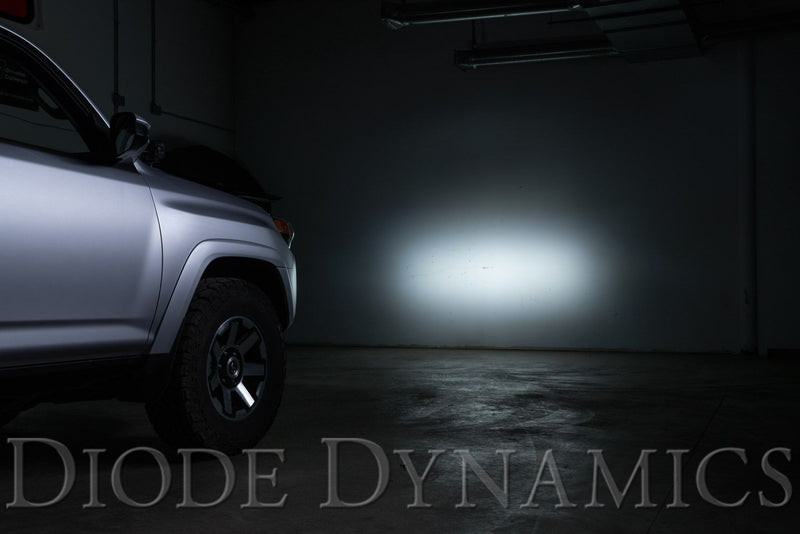

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
